GoDex WebPrint installation

GoDex

Here is the link to download WebPrint
https://godex.s3-accelerate.amazonaws.com/SqBgbx1wwi5G4r1uHKzruw.file?v01

When it has downloaded, unzip the folder and open GoDEX_Setup.msi.


Work through the Wizard until Web Print is installed.

It should have created a shortcut in the start menu and the desktop. It installs by default to C:\Program Files (x86)\GoDEX\Web Print.

A PDF manual with the file name WebPrint_UM_en.pdf is also included in the install folder in GoDEX\Web Print\Sample

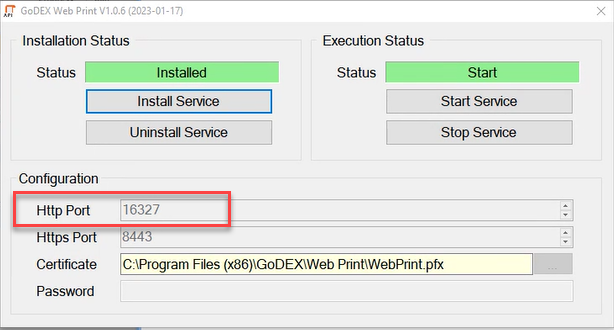

Start the application by opening the shortcut or opening C:\Program Files (x86)\GoDEX\Web Print\WebApiCtr.exe



You can leave the defaults or change the Http Port to 8080, which I have also tried, if the default is already used.
Click “Install Service”, it should automatically start the service. You can then close the window.

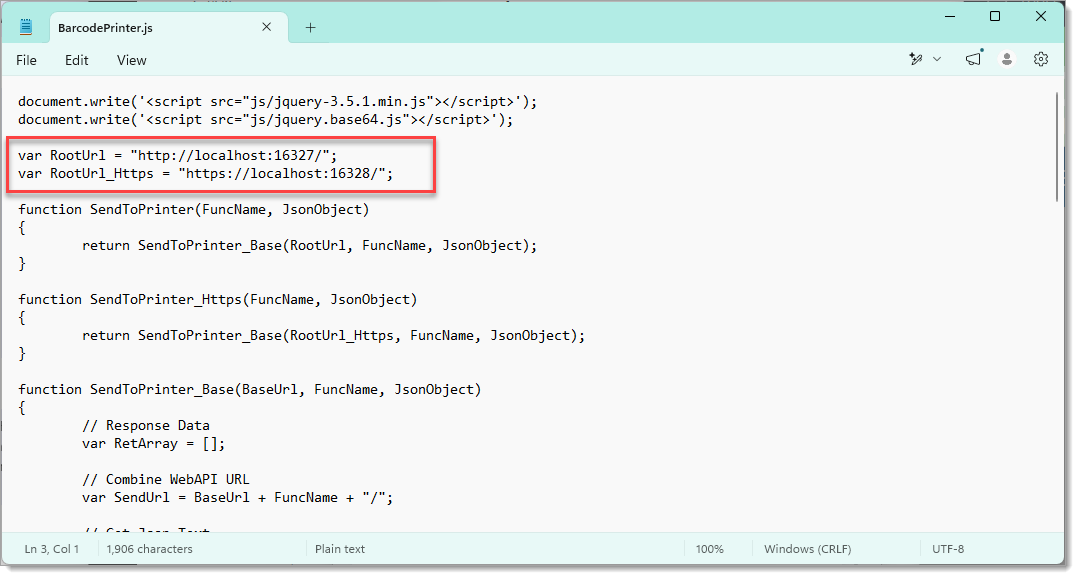

A port number that is unlikely to be used by other applications and services should be used if port 8080 is already in use. An example of such a port number is 16327. A list of assigned port numbers that can be searched for free port numbers can be found at https://www.iana.org/assignments/service-names-port-numbers/service-names-port-numbers.xhtml.

It should have created a windows service that will start automatically when Windows starts. You can check if it is active by opening the application again.

SCM Setup

To set up WebPrint for the app, the IP address of the computer it is installed to needs to be saved in SCM of the main system. You can also use 127.0.0.1 or localhost but this will prevent Web Print working from other devices on the network.

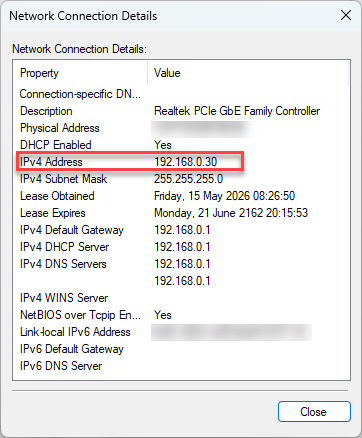

You can find the IP address of the computer in Control Panel, Network Connections by finding the adapter for the local network, clicking Status in the context menu, and then clicking Details in the general tab.

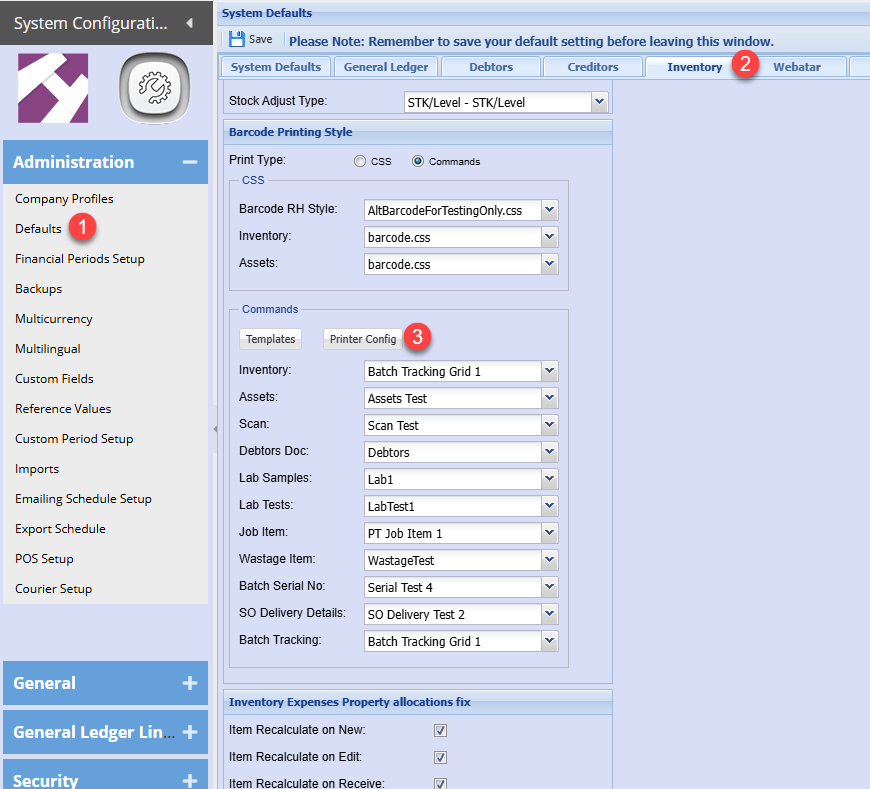

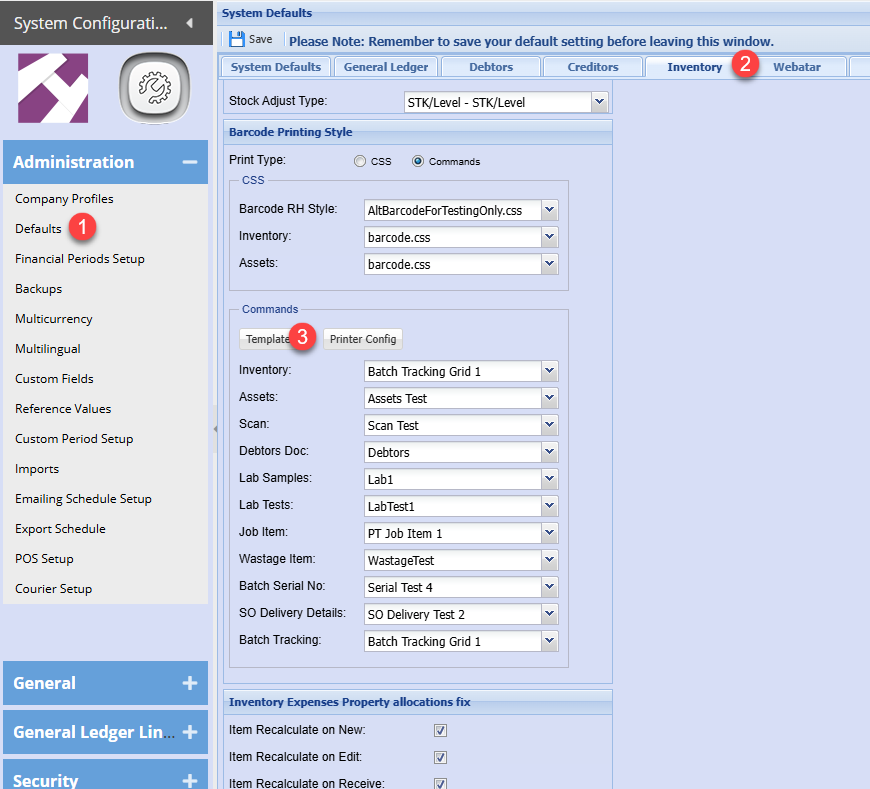

In SCM the IP address is saved in Printer Config form in Defaults, Inventory, Barcode Printing Style (WIP)

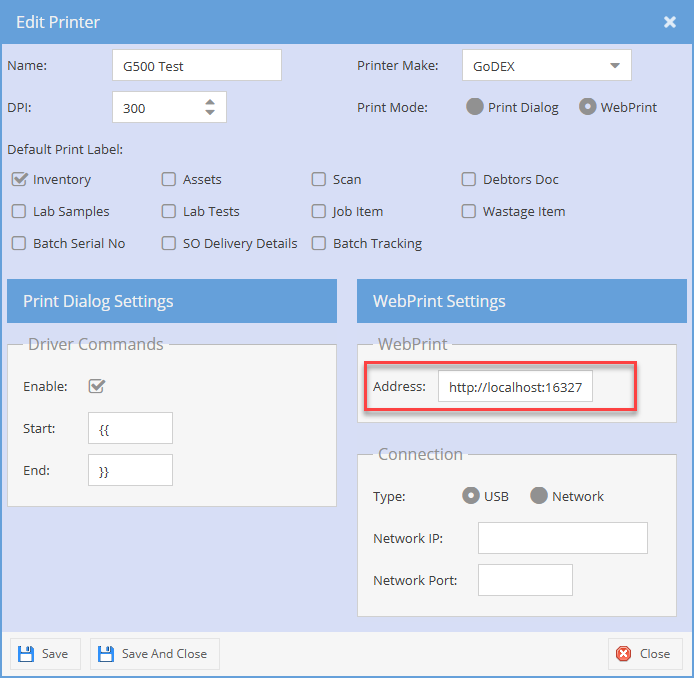

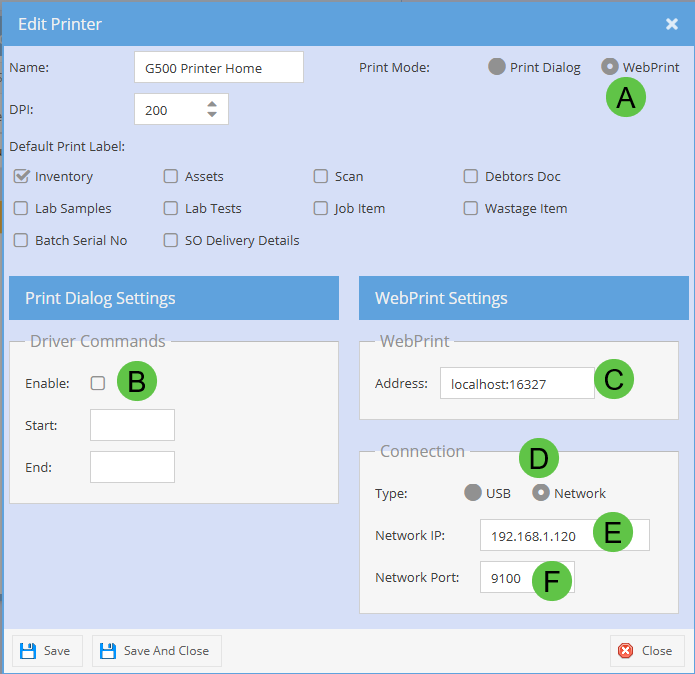

In the dialog, select WebPrint and then enter the IP address followed by a colon and the port number used by WebPrint. You can also include “http://”  but this should be assumed by default in Webatar.
Setting the Print Mode to WebPrint will also affect barcode printing in the main system currently.



Before closing the dialog, click the save button.


Testing WebPrint from SCM

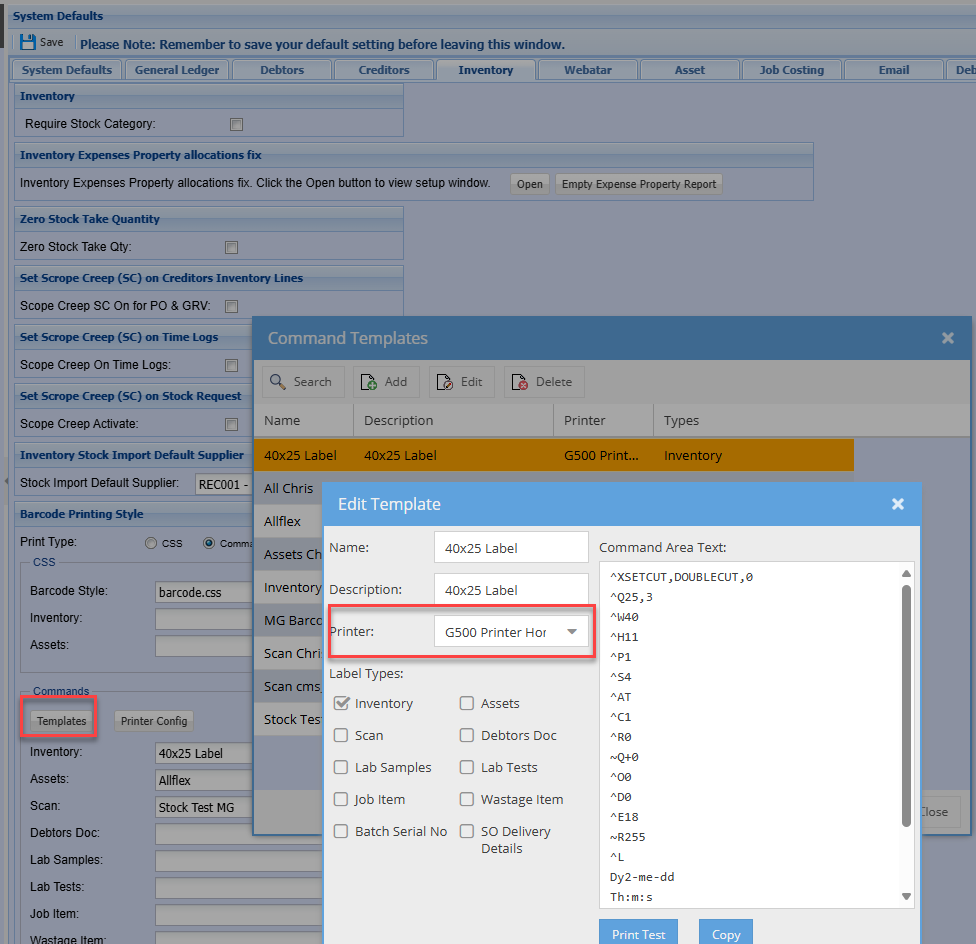

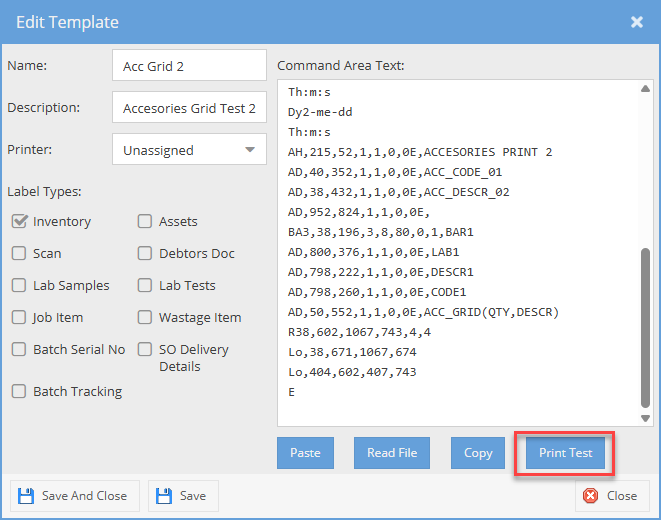

To check if WebPrint is working from the main system, you can use Print Test dialog, accessed by opening a Command Template to edit.



A Command Template needs to be created and saved first with the placeholder values in GoLabel II.

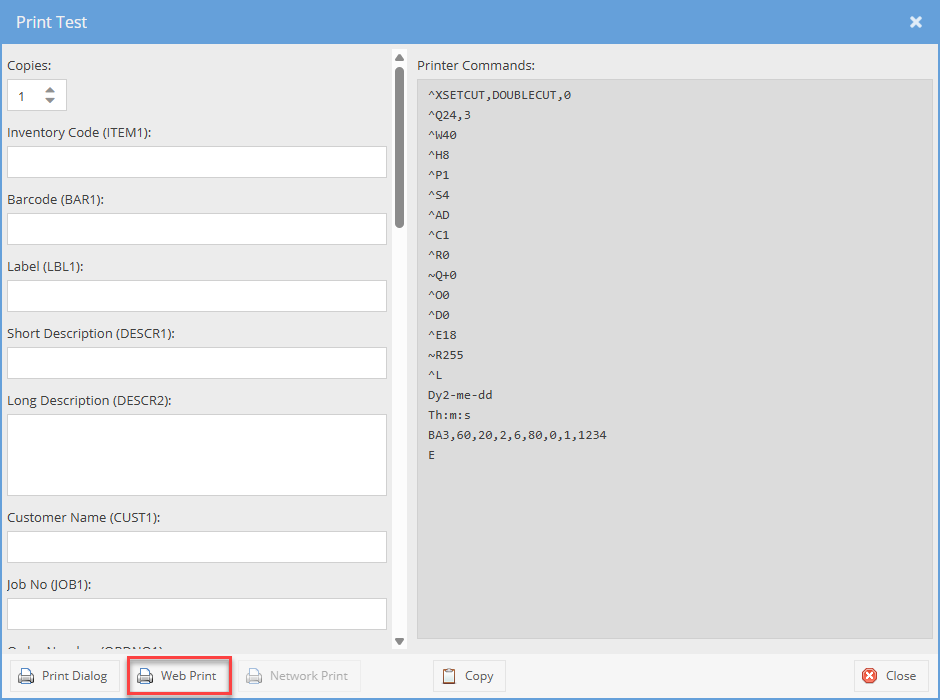

If Web Print is working, then clicking the Web Print button should result in the same barcode as you would get in GoLabel II but with the placeholder values replaced with the values in the fields of the Print Test form.

Network printing setup

When printing to a network printer, ensure that a printer is setup with IP address

See below settings

Once the new printer is setup for network, link the label to the printer
